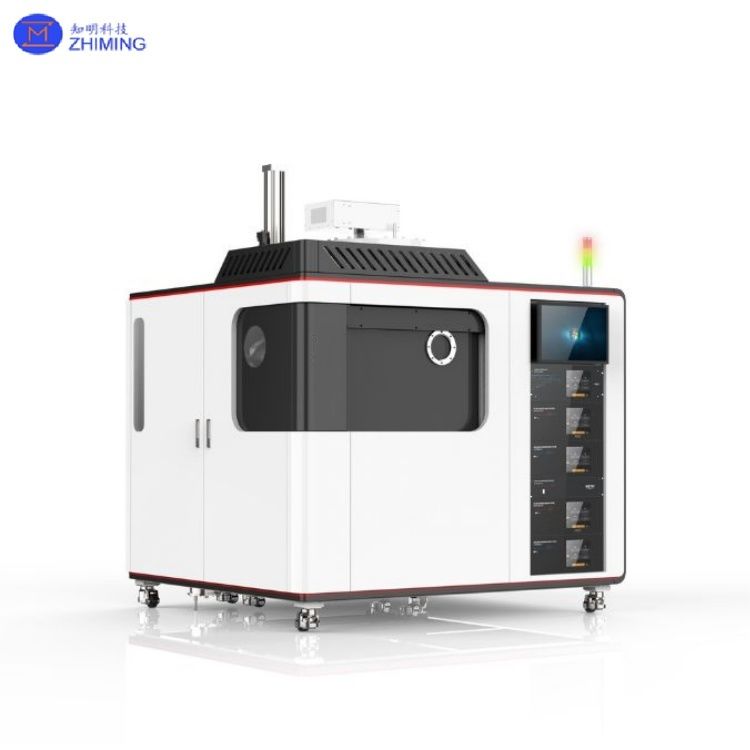

Ion Beam Etching Machine of Si/SiO2/Metals Materials
Ion beam etching, also known as ion milling, is a non-selective and anisotropic dry etching technology. Its core principle involves using a broad, collimated high-energy ion beam generated by an ion source to bombard the workpiece surface in a vacuum environment, thereby removing material through physical sputtering. Unlike plasma etching, the sample is not directly exposed to the plasma, thus avoiding electrical damage and contamination caused by plasma and enabling better process control.
Summary and Analysis of Key Subsystems in Ion Beam Etching Systems
An ion beam etching system typically consists of the following key subsystems:
|
Subsystem
|
Core Function
|
Key Technical Points and Impact
|
|
Vacuum System
|
Provide high vacuum environment
|
Determines process cleanliness, beam stability, and ultimate precision.
|
|
Ion Source
|
Generate and extract ion beam
|
Determines etching rate, uniformity, available gas types, and equipment reliability (RF source vs. Kaufman source).
|
|
Sample Stage
|
Secure and manipulate samples
|
Rotation function is key to achieving anisotropic etching; temperature control affects process window.
|
|
Control System
|
Fully automated process control
|
Ensures process repeatability and precision; end-point detection enhances process capability.
|
|
Neutralizer
|
Neutralize ion beam charge
|
Prevents charging damage on insulating materials; essential for etching dielectric materials.
|
Ion Beam Etching Basic Principles
Ion beam etching (IBE) is an advanced micro/nano fabrication technology that uses a high-energy ion beam to remove material from the surface, enabling precise pattern transfer.
The principle of ion beam etching involves a high-energy ion beam (typically argon ions) generated by an ion source, which bombards the material surface vertically or at an oblique angle. The high-energy ions collide with atoms on the material surface, causing atoms to be ejected and removing material layer by layer, thus achieving etching. This etching method can be performed without chemical reactions, belonging to a physical etching process.
Structure diagram of ion beam etching equipment
Processing Capabilities:
- Materials: Au (gold), Pt (platinum), Cu (copper), Ta (tantalum), AlN (aluminum nitride), Si (silicon), SiO₂ (silicon dioxide), and other thin-film materials.
Process Flow:
- Preparation: Place the sample to be etched in a vacuum chamber and clean the surface.
- Mask Preparation: Cover the areas to be etched with a mask (e.g., photoresist or metal thin film) to protect the non-etched regions.
- Ion Beam Generation: Activate the ion source to generate a high-energy ion beam, typically using argon gas.
- Etching Process: Control the energy, angle, and exposure time of the ion beam to etch the sample.
- Mask Removal: After etching is completed, remove the protective mask to obtain the final patterned structure.
Schematic diagram of ion beam etching process
Ion Beam Etching Equipment Application Scenarios
1. Semiconductor Manufacturing: Used for creating fine circuits and patterns in integrated circuit fabrication.
2. Optical Devices: Applied in precision machining of optical components, such as surface treatment of gratings and lenses.
3. Nanotechnology: Fabrication of nanostructures and devices, such as nanopores and nanowires.
4. Materials Science: Used for studying physical and chemical properties of material surfaces and preparing functional surface materials.
Ion Beam Etching Equipment Advantages
1. Advantages:
- High Precision: Enables nanoscale high-precision etching.
- Non-Selective Etching: Capable of uniformly etching various materials without chemical selectivity.
- Smooth Surface: Results in a smooth post-etch surface with reduced roughness.
- Isotropic and Anisotropic Etching: Enables etching in different directions by controlling the ion beam angle.
Case study of ion beam etching (IBE)
2. Materials That Can Be Etched:
- Metals: Gold, silver, copper, aluminum, etc.
- Semiconductor Materials: Silicon (Si), gallium arsenide (GaAs), etc.
- Insulating Materials: Silicon oxide (SiO₂), silicon nitride (Si₃N₄), etc.
- Other Materials: Polymers, ceramics, etc.
3. Etching Precision:
The precision of ion beam etching primarily depends on the focusing capability of the ion beam, the resolution of the mask, and the control of etching time. It typically achieves precision of 10 nanometers or even higher, depending on specific process parameters and equipment conditions.
Ion Beam Etching Equipment FAQ
1. Q: What is ion beam etching?
A: Ion beam etching (IBE) is a dry etching process that removes material by physically sputtering the target surface with a broad, collimated beam of high-energy ions in a high vacuum.
2. Q: What is the difference between ion beam etching and reactive ion etching?
A: The key difference is that IBE is a purely physical process where the sample is separated from the ion source, while RIE combines both physical ion bombardment and chemical reactions with the sample directly in the plasma.
Tag: #Ion Beam Etching Machine, #Customized, #Si/SiO2/Metals Materials
