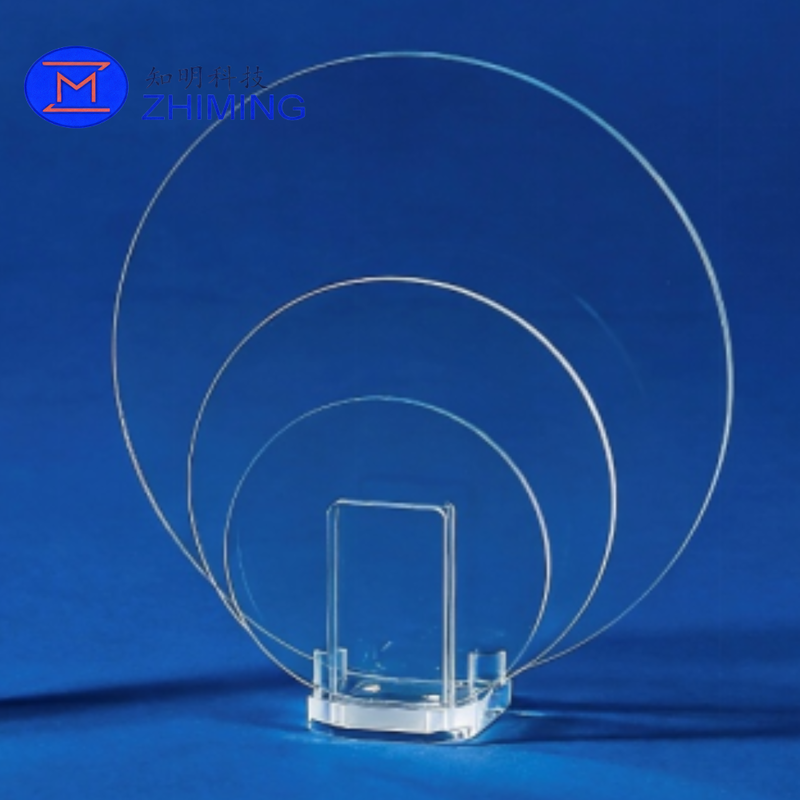

Sapphire Temporary Wafer Carrier for Advanced Semiconductor Packaging

Sapphire Temporary Wafer Carrier for Advanced Semiconductor Packaging

Product Overview

The sapphire temporary wafer carrier is a high-performance substrate solution designed for advanced semiconductor packaging processes, including ultra-thin wafer handling, 2.5D/3D IC integration, TSV, RDL, and fan-out panel-level packaging (FOPLP).

It provides a rigid, thermally stable, and dimensionally precise support platform for temporary bonding and debonding processes, enabling stable processing of ultra-thin wafers under 50 μm. By addressing critical warpage and stress-induced deformation challenges, the carrier significantly improves process yield, alignment accuracy, and manufacturing stability in advanced packaging flows.

Industry Challenges

As semiconductor packaging continues to evolve toward higher integration density and thinner wafer structures, manufacturers face increasing difficulties in maintaining structural stability throughout multi-step thermal and mechanical processes.

Key challenges include:

• Coefficient of thermal expansion (CTE) mismatch among die, substrate, interposer, underfill, and molding compounds
• Stress accumulation during repeated thermal cycling
• Curing shrinkage of bonding and encapsulation materials
• Non-uniform thickness distribution in ultra-thin wafer stacks
• Warpage-induced alignment deviation and yield degradation
• Mechanical fragility of ultra-thin wafers (<50 μm thickness)

These issues collectively limit process scalability, reduce yield, and increase manufacturing cost in advanced packaging production lines.

Solution: Sapphire Temporary Carrier Platform

Sapphire is an ideal engineering material for temporary wafer carriers due to its unique combination of mechanical, optical, and thermal properties. It provides a stable physical foundation for demanding advanced packaging processes where precision and repeatability are critical.

The sapphire carrier enables:

• High-stability wafer support during grinding, bonding, and thinning
• Controlled deformation under thermal cycling environments
• Compatibility with laser-based debonding processes
• Uniform stress distribution across large-format substrates
• Reusable and chemically stable performance in industrial environments

Key Advantages

1. Ultra-High Mechanical Rigidity

With a Young’s modulus of 345–420 GPa, sapphire effectively suppresses bending and warpage, ensuring structural stability during high-stress thermal and mechanical processes.

2. High Hardness and Wear Resistance

Vickers hardness of 1800–2200 HV provides excellent resistance to surface damage, enabling long service life and repeated process cycles.

3. Optical Transmission Capability

High transmittance (>83% in 300–1200 nm range) supports laser debonding processes and ensures compatibility with multiple temporary bonding technologies.

4. Superior Material Uniformity

Low internal variation ensures consistent stress distribution, minimizing localized deformation and improving wafer-level process consistency.

5. Thermal and Chemical Stability

Stable under high-temperature cycling and chemical cleaning environments, making it suitable for high-reuse industrial semiconductor processes.

Technical Specifications

Wafer & Panel Formats

Dimensional & Surface Accuracy

Applications

• Advanced wafer thinning processes
• 2.5D / 3D IC heterogeneous integration
• TSV (Through-Silicon Via) fabrication
• RDL (Redistribution Layer) processes
• Temporary wafer bonding and debonding systems
• Fan-Out Panel Level Packaging (FOPLP)
• Ultra-thin wafer handling (<50 μm)

Engineering Value

The sapphire temporary wafer carrier enables semiconductor manufacturers to overcome critical warpage and stability limitations in advanced packaging by delivering:

• Improved wafer-level dimensional stability
• Reduced warpage-induced yield loss
• Enhanced alignment precision in fine-pitch processes
• Stable handling of ultra-thin wafers
• Higher process repeatability and throughput
• Compatibility with next-generation heterogeneous integration platforms

FAQ

Q1: What makes sapphire suitable for advanced packaging carriers?
A: Sapphire combines ultra-high stiffness, hardness, and thermal stability, which significantly reduces warpage and improves dimensional control during ultra-thin wafer processing.

Q2: Is the carrier compatible with laser debonding processes?
A: Yes. Sapphire offers high optical transmittance in the UV to mid-IR range, making it fully compatible with laser-based debonding and other advanced separation techniques.

Q3: Can sapphire carriers support large panel-level packaging applications?
A: Yes. Sapphire carriers can be manufactured in large panel formats with excellent flatness and uniform stress distribution, making them suitable for FOPLP and other large-area advanced packaging technologies.
