Customized SiC Ceramic Guide Rail Zero-Wear Corrosion-Resistant High-Speed

Ονομασία μάρκας:	ZMSH
Αριθμός μοντέλου:	Σιδηροδρομικός οδηγός SIC
MOQ:	5
τιμή:	by case
Χρόνος παράδοσης:	2-4 εβδομάδες
Όροι πληρωμής:	T/t

Λεπτομέρειες

Περιγραφή προϊόντων

Λεπτομέρειες

Τόπος καταγωγής:

ΚΙΝΑ

Πιστοποίηση:

rohs

Συντελεστής θερμικής διαστολής:

4.5 × 10⁻⁶/k (0-1000 ° C)

Σκληρότητα:

MOHS 9.5, Vickers HV2500

Ελαστικό μέτρο:

410 GPA ή υψηλότερη

Θερμική αγωγιμότητα:

150-400 w/m · k

Πυκνότητα:

~ 3.1 g/cm3

Αιτήσεις:

Παραγωγή και επιθεώρηση ημιαγωγών

Συσκευασία λεπτομέρειες:

πακέτο σε αίθουσα καθαρισμού 100 βαθμών

Επισημαίνω:

Customized SiC ceramic guide rail

Corrosion-resistant ceramic substrate

High-speed zero-wear guide rail

Περιγραφή προϊόντων

SiC Ceramic Guide Rail Brief

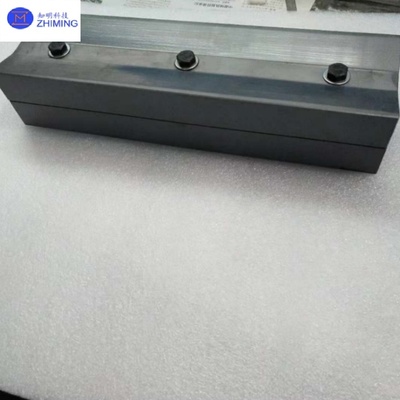

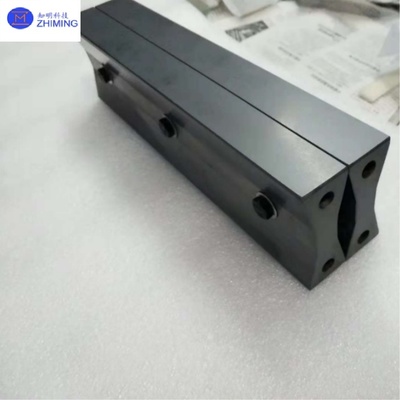

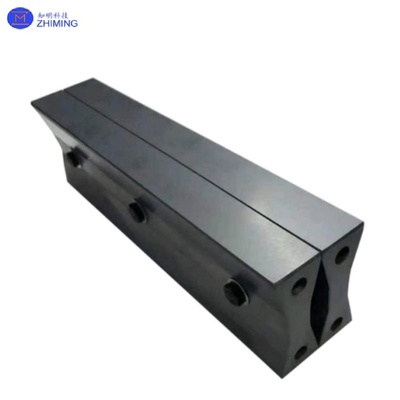

Customized SiC Ceramic Guide Rail Zero-Wear Corrosion-Resistant High-Speed

The SiC Ceramic Guide Rail is a core motion component utilized in ultra-precision equipment (such as high-end lithography machines and wafer inspection systems). It operates by employing high-pressure gas (air or inert gas) to form a micrometer-level air film (typically 3-20μm thick) between the guideway and the moving components, enabling completely non-contact, frictionless nanoscale precision motion. Its core value lies in providing ultra-high precision, high speed, high stability, and zero-wear motion solutions for semiconductor manufacturing, precision optics, and other fields.

SiC Ceramic Guide Rail Characteristics

The silicon carbide (SiC) aerostatic guideway achieves exceptional performance through the synergistic combination of its inherent material properties and unique aerostatic principle. It delivers nanoscale motion accuracy (e.g., positioning accuracy ±0.15μm, repeatability ±75nm or even higher, motion straightness ±0.1-0.5μm, and arc-second level attitude control) due to SiC's extreme hardness, stiffness, and stability, coupled with a frictionless air bearing mechanism . This system enables true zero-friction motion, ensuring lifelong precision stability, maintenance-free and cleanroom-compatible operation, while supporting high-speed (1 m/s) and high-acceleration (4 G) movement . Its excellent thermal stability, attributed to an ultra-low coefficient of thermal expansion (~4.5×10⁻⁶/K), minimizes thermal deformation to 1/5 of traditional metal guides, allowing it to maintain nanoscale accuracy during prolonged operation and resist chemical corrosion . Despite relying on an air film, high stiffness (>500 N/μm) is achieved via optimized bearing design and SiC's high elastic modulus (410 GPa), effectively suppressing vibrations with the air film's damping effect and active isolation systems . Furthermore, the guideway offers modularity and customizability for multi-axis setups, travel length (100-1000mm), and load capacity (5-50kg), often incorporating a precise cable management system to avoid motion interference.

SiC Ceramic Guide Rail Application

The silicon carbide (SiC) aerostatic guideway serves as a critical precision motion component across multiple high-end manufacturing sectors due to its exceptional stability, zero friction, and nanoscale accuracy. It is indispensable in semiconductor manufacturing and inspection, particularly as the core of the wafer stage in EUV lithography systems, where it enables sub-nanometer scanning and positioning, directly impacting overlay accuracy and line width uniformity, and is also widely used in wafer defect inspection and electron beam inspection systems for high-speed, high-precision scanning. In precision optical manufacturing and metrology, it provides reference motion for ultra-precision optical processing equipment (e.g., aspheric mirror fly-cutting), laser interferometers, and high-precision measuring machines. Within aerospace and defense, it ensures accuracy and reliability in extreme environments for applications such as satellite laser communication assembly, high-resolution space remote sensing satellites, and inertial navigation systems. Additionally, it is increasingly adopted in emerging technologies and advanced research, including precision equipment for biomedicine (e.g., gene editing micro-manipulation) and quantum computing (e.g., quantum chip fabrication), leveraging its ability to meet the stringent demands of these frontier fields.

SiC Ceramic Guide Rail Parameters

Parameter	Typical Value / Range	Significance
Coefficient of Thermal Expansion	4.5×10⁻⁶/K (0-1000°C)	Extremely low value, excellent thermal stability, ensures minimal size change under temperature fluctuations, matches silicon wafers well.
Hardness	Mohs 9.5, Vickers HV2500	Extremely high hardness, second only to diamond, endows the guideway with exceptional wear resistance and long service life.
Elastic Modulus	410 GPa or higher	High elastic modulus signifies high stiffness, effectively resisting load-induced deformation, ensuring smooth and precise motion.
Thermal Conductivity	150-400 W/m·K	High thermal conductivity aids in rapid temperature equilibration, reduces thermal gradients, and avoids local thermal deformation.
Density	~3.1 g/cm³	Compared to many metals, it contributes to component lightweighting while providing high stiffness.

ZMSH Service

Customization Services for SiC Aerostatic Guideways:

•Material composition

•Geometry & dimensions

•Multi-axis integration

•Performance parameters

•Surface finishing

•Embedded sensors

•Modular assembly

Core advantages maintained:

•Thermal stability

•Zero wear

•Nanoscale accuracy

SiC Ceramic Guide Rail Q&A

Q1: What is the main purpose/application of a silicon carbide (SiC) aerostatic guideway?

A1: It is primarily used as the core motion component in the wafer stage of lithography machines (especially EUV lithography) to achieve and maintain nanometer-level positioning accuracy for semiconductor manufacturing.

Q2: Why is silicon carbide (SiC) material used for aerostatic guideways?

A2: Silicon carbide is chosen for its extremely high hardness (close to diamond), low thermal expansion coefficient, high stiffness, and exceptional wear resistance, which collectively ensure long-term stability, zero wear, and resistance to thermal deformation under precise motion conditions.

Tags: #SiC Ceramic Guide Rail, #Customized, #Zero-Wear, #Corrosion-Resistant, #High-Speed
