2 inch Precision Processed Quartz Glass Wafer DSP SSP Diameter 50.8mm

2 inch Precision Processed Quartz Glass Wafer DSP SSP Diameter 50.8mm

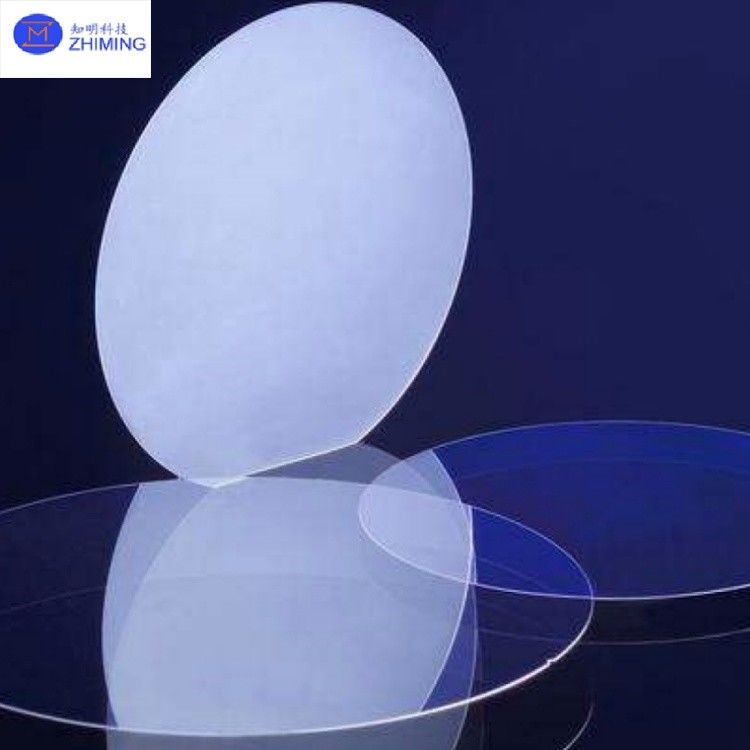

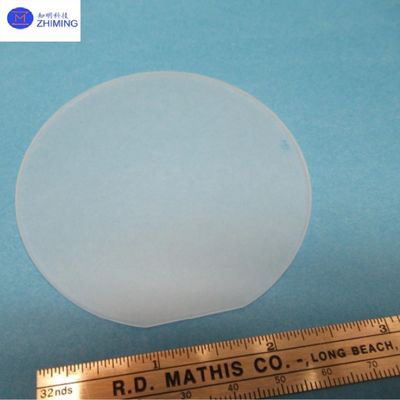

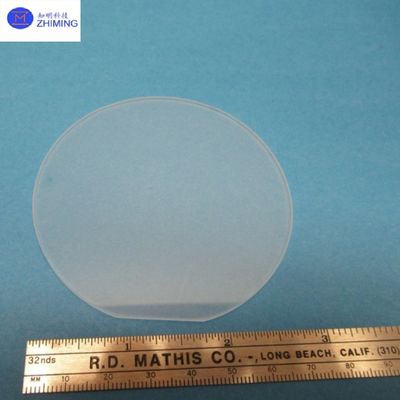

​2-inch quartz wafers are semiconductor-grade substrates manufactured from high-purity silicon dioxide (SiO₂), achieving micron-level flatness through precision processing techniques such as CNC cutting and laser polishing. These wafers adhere to SEMI standards and support customization in dimensions and thickness (±0.02 mm tolerance), catering to applications in optoelectronics, MEMS (Micro-Electro-Mechanical Systems), and semiconductor packaging.

ZMSH specializes in ​​customized production​​ of non-standard geometries (e.g., non-standard apertures, graded thickness) and advanced surface treatments (Anti-Reflective (AR) coatings, hydrophobic films) to address unique client requirements. Rigorous ​​full-process quality control​​ ensures compliance with stringent specifications, from raw material testing (hydroxyl content <50 ppm) to final AOI inspection, guaranteeing Total Thickness Variation (TTV) <0.005 mm and surface roughness Ra <1.5 nm. For time-sensitive projects, ZMSH offers ​​rapid response services​​, including small-batch prototyping (minimum 10 units) and expedited delivery (72-hour turnaround) to meet urgent demands.

Specification for 2inch quartz wafer

​​Key Characteristics​​ of 2inch quartz wafer

1. ​​Optical Excellence​​

​​· Broad-Spectrum Transmittance​​: >90% transmittance in the ultraviolet (185–3500 nm) range, with superior performance in the short-wave UV band (185 nm) compared to conventional glass.

​​· Low Thermal Expansion​​: Coefficient of thermal expansion (CTE) of 0.52×10⁻⁶/°C (5–35°C), withstanding long-term temperatures up to 1100°C and short-term exposure to 1450°C.

​​2. Mechanical & Chemical Stability​​

· ​​High Strength​​: Flexural strength 2–3× that of standard glass, Mohs hardness of 7.

· ​​Corrosion Resistance​​: 30× higher acid resistance than ceramics, ideal for harsh chemical environments.

3. ​​Electrical Insulation​​

· Resistivity exceeding 10¹⁸ Ω·cm, with low dielectric loss at high frequencies, making it suitable for RF circuits and sensors.

​​Core Applications​​ of 2inch quartz wafer

1. ​​Semiconductor Manufacturing​​

· Substrates for CMOS image sensors and RFID chip packaging, enabling Wafer-Level Packaging (WLP) for enhanced integration.

· MEMS device substrates (e.g., pressure sensors, accelerometers) ensuring structural stability for micro-components.

​​2. Optoelectronic Systems​​

· UV laser windows and fiber-optic communication couplers, leveraging UV transmission capabilities.

· Aerospace optical windows resistant to radiation and thermal cycling.

​​3. Medical & Research​​

· High-temperature optical components for endoscopic imaging systems.

· Heat-resistant observation windows for laboratory reactors.

​​Recommendations for ​​Quartz Irregular Window Plates​​

Engineered for specialized optical systems, these windows feature freeform surface cutting technology, supporting asymmetric apertures and graded thickness configurations. Examples include:

​​· Angled-Cut Windows​​: Optimized for light path incidence angles to minimize reflection losses.

· ​​Through-Hole Windows​​: Enable multi-sensor integration.

​​· Rapid Prototyping​​: 3–5 days for samples, <500-unit small batches, and vacuum coating services (e.g., AR/reflective coatings) for military and research applications.
